ای سی تقویت کننده،اپ امپ با پهنای باند 15 مگاهرتز و ولتاژ کاری f ±5Vتا ±20V ولت Operational Amplifiers

مشخصات فنی محصول:

Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: Through Hole

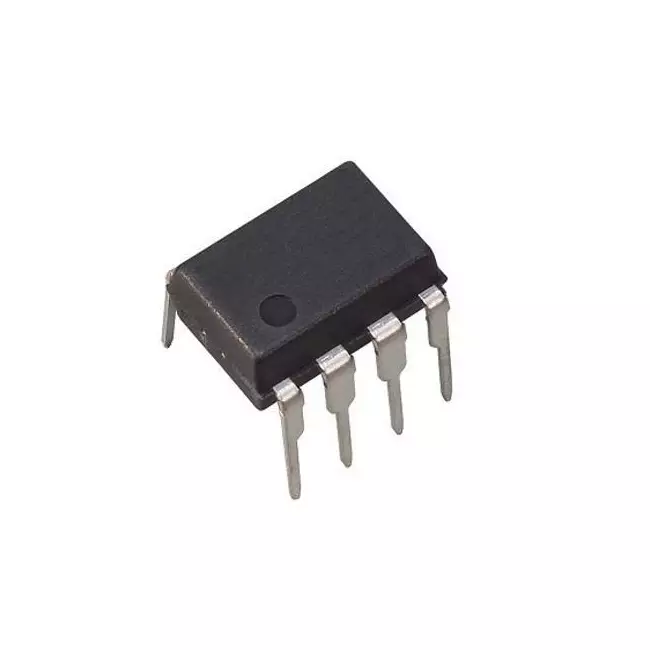

Package / Case: PDIP-8
Supply Voltage - Max: 40 V
Number of Channels: 1 Channel
GBP - Gain Bandwidth Product: 15 MHz
SR - Slew Rate: 70 V/us
CMRR - Common Mode Rejection Ratio: 70 dB to 100 dB
Ib - Input Bias Current: 500 nA
Vos - Input Offset Voltage: 10 mV
Supply Voltage - Min: 10 V
Operating Supply Current: 4.5 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
